• Air conditioning, dual-zone, automatic, individual climate settings for driver and right front passenger
• Assist handle, front passenger (Also includes rear outboard passenger assist handle on Extended and Crew Cab Models)
• Cigarette lighter, on instrument panel
• Coat hook, driver side (Also includes passenger side coat hook on Extended and Crew Cab Models)
• Console, floor, includes storage compartment and dual cupholders
• Console, overhead mini, includes map lights (Not available with (CF5) Sunroof, power)
• Cruise control, electronic with set and resume speed, includes telltale in instrument panel cluster
• Cupholders, front (Also includes rear cupholders on Extended and Crew Cab Models)
• Defogger, rear-window, electric (Not available with (A28) Window, rear sliding)
• Door locks, power
• Door trim, side reflectors (Also includes lights on SLE and SLT)
• Floor covering, color-keyed carpeting and rubberized vinyl floormats (with Extended and Crew Cab Models, includes rear floormats)
• Headliner, Shale-colored cloth, with matching retainer moldings
• Keyless entry, remote, includes 2 transmitters, panic button and content theft alarm
• Lighting, dome lamp, reading, backlit instrument panel switches and door handle-activated illuminated entry
• Mirror, inside rearview, electrochromic (light-sensitive auto dimming), 8-point compass and outside temperature indicator
• OnStar, 1-year Safe and Sound Service, includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Tracking, Emergency Services, Roadside Assistance, Remote Door Unlock, Remote Horn and Lights, GM Goodwrench Remote Diagnostics, AccidentAssist and Online Concierge. Drivers can also obtain the available voice-activated, hands-free Personal Calling service and Virtual Advisor that provides location-based traffic and weather reports and other personalized information
• Power outlets, auxiliary, covered, 2 dash-mounted, 12-volt
• Seat adjuster, power, driver 6-way (With (AN3) Seats, front power reclining full-feature buckets, includes 10-way adjuster)
• Seat adjuster, power, front passenger 10-way (Included and only available with (AN3) Seats, front power reclining full-feature buckets)
• Seat trim, leather (Not available with Regular Cab Models. - Extended Cab Models include Front Leather seating surfaces with Rear Vinyl Bench. - Crew Cab Models includes front and rear leather appointed seating surfaces)
• Seats, front power reclining full-feature buckets, includes adjustable head restraints, floor console, driver and passenger power lumbar, driver and front passenger 10-way power adjustable, dual inboard armrests, heated driver and passenger cushion and back, 2-position driver-side memory and storage pockets
• Seats, rear bench, folding, 3-passenger (includes child seat top tether anchor)
• Sound system feature, rear audio controls, includes dual headphone jacks (headphones not included), power outlet and controls for volume, station selection and media (Requires Crew Cab Models)
• Sound system feature, steering wheel mounted radio controls, Radio and Driver Information Center (DIC). Provides access to enhanced Driver Information Center features and information.
• Sound system, ETR AM/FM stereo with 6-disc CD changer, includes seek-and-scan, digital clock, auto-tone control, speed-compensated volume, TheftLock, Radio Data System (RDS), and Bose speaker system (includes 6-speakers, Bose amplifier and Bose subwoofer) (May be substituted with (UB1) Sound system, AM/FM stereo with CD and cassette)
• Steering wheel, leather-wrapped rim, Black, includes theft-deterrent locking feature
• Theft-deterrent system, PASSlock II
• Visors, padded, Shale-colored, driver and passenger side with cloth trim, extenders, pocket on driver side and vanity mirror on passenger side
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder, turn signal on
• Windows, power, includes driver and passenger express-down

• Alternator, 145 amps
• Battery, heavy-duty, 600 cold-cranking amps, includes rundown protection and retained accessory power
• Brakes, 4-wheel antilock, front hydraulic disc and rear drum (Not standard with (NYS) 4-wheel steering)
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, hydroformed
• GVWR, 7000 lbs. (3175 kg) (Standard on TK15543 Models only)
• Pickup bed, Wideside box
• Rear axle, 3.42 ratio (Standard on 4WD Models only. - Not available with (NYS) 4-wheel steering)
• Recovery hooks, front, frame-mounted
• Steering, power
• Suspension Package, Handling/Trailering, heavy-duty includes 36mm piston monotube shocks
• Suspension, front, independent (2WD Models include coil springs. - 4WD Models include torsion bars)
• Suspension, rear, 3-stage springs (Standard on Crew Cab Models only)
• Tire carrier, outside spare, winch-type mounted under frame at rear
• Tire, spare, full-size, 17" (43.2 cm) with steel wheel located at rear underbody of vehicle
• Tires, P265/70R17, on-/off-road, blackwall (Requires 4WD Models. - With TK15*03 requires (Z71) Suspension Package, Off-Road. - With TK15*53 requires (Z71) Suspension Package, Off-Road or (NYS) 4-wheel steering, QUADRASTEER. - Standard on TK15543 Models. Fleet and Government order types with (Z85) Suspension Package, Handling/Trailering, heavy-duty on models TK15*03 or TK15*53 are also available)
• Tools, mechanical jack and wheel wrench located in back of cab
• Transfer case, electronic Autotrac, includes push-button controls (Requires 4WD Models)
• Wheels, 4 - 17" x 7.5" (43.2 cm x 19.1 cm) 6-lug aluminum, includes steel spare (Upgradeable to (P27) Wheels, 4 - 17" x 7.5" (43.2 cm x 19.1 cm) 6-lug polished cast aluminum)

• Air bags, frontal, driver and right front passenger, includes Passenger Sensing System (Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owner's Manual for more safety information)
• Brakes, 4-wheel antilock, front hydraulic disc and rear drum (Not standard with (NYS) 4-wheel steering)
• Daytime running lamps, includes automatic exterior lamp control

Light Duty Power Package

• (Lm7) Engine
• Vortec 5300 V8 Sfi Or (L33) Engine
• Vortec 5300 V8 Sfi
• Or (L59) Engine
• Vortec 5300 V8 Sfi
• (G80) Differential
• Automatic Locking
• Heavy-Duty Or (G86) Differential
• Limited Slip
• Heavy-Duty
• (Z82) Trailering Equipment
• Heavy Duty

Seats, Front Power Reclining Full-Feature Buckets

• Adjustable Head Restraints
• Floor Console
• Driver And Passenger Power Lumbar
• Driver And Front Passenger 10-Way Power Adjustable
• Dual Inboard Armrests
• Heated Driver And Passenger Cushion And Back
• 2-Position Driver-Side Memory And Storage Pockets (Std)

Skid Plate Package

• Aluminum Front Underbody Shield Starting Behind Front Bumper And Running To 1St Cross-Member
• Protecting Front Underbody
• Oil Pan
• Differential Case And Transfer Case
• Frame-Mounted Shields

Slt Preferred Equipment Group

• Standard Equipment

Sound System Feature, Xm Satellite Radio. Features 67 Channels Of 100% Commercial-Free Music

• D In Its Over 150 Channels Of The Best In Music
• News
• Sports
• Talk
• Comedy
• Xm Instant Traffic And Weather
• More. Digital Quality Sound With Coast-To-Coast Signal Coverage. Three Trial Months -No Obligation

Sound System, Etr Am/Fm Stereo With 6-Disc Cd Changer

• Seek-And-Scan
• Digital Clock
• Auto-Tone Control
• Speed-Compensated Volume
• Theftlock
• Radio Data System (Rds)
• Bose Speaker System (Includes 6-Speakers
• Bose Amplifier And Bose Subwoofer) (Std)

Suspension Package, Off-Road

• 1.81" (46 Mm) Shocks
• Off-Road Jounce Bumpers
• Stabilizer Bars
• (Nzz) Skid Plate Package
• (K47) Air Cleaner
• High Capacity And Z71 Decals On Rear Quarters

Tires, P265/70R17, On-/Off-Road, White Outlined-Letter

• An On-/Off-Road Blackwall Spare

Trailering Equipment, Heavy-Duty

• Trailering Hitch Platform
• 7-Wire Harness (Harness Includes Wires For: Park Lamps
• Backup Lamps
• Right Turn
• Left Turn
• Electric Brake Lead
• Battery And Ground) With Independent Fused Trailering Circuits Mated To A 7-Way Sealed Connector
• 7-Way To 4-Way Trailer Adapter
• Instrument Panel Jumper Wiring Harness For Electric Trailer Brake Controller
• 1-Way Sealed Connector For Center High-Mounted Stop/Brake Lamp. Also Includes (K47) Air Cleaner
• High Capacity
• (Knp) Cooling
• External Transmission Oil Cooler.

Wheels, 4 - 17" X 7.5" (43.2 Cm X 19.1 Cm) 6-Lug Polished Cast Aluminum

• Steel Spare

Additional Packages

• Air Cleaner
• High-Capacity
• Cooling
• External Transmission Oil Cooler
• Auxiliary
• Heavy-Duty Air-To-Oil
• Customer Dialogue Network
• Differential
• Automatic Locking
• Heavy-Duty
• Rear
• Engine
• Vortec 5300 V8 Sfi (295 Hp [219.7 Kw] @ 5200 Rpm
• 335 Lb.-Ft. [452.3 N-M] @ 4000 Rpm) (Std)
• Gvwr
• 7000 Lbs. (3175 Kg) (Std)
• License Plate Bracket
• Front (Will Be Forced On Orders With Ship-To States That Require A Front License Plate)
• Off-Road Package
• Paint
• Solid (Std)
• Rear Axle
• 3.42 Ratio (Std)
• Regular Production Accessory
• Assist Steps
• Chrome Plated Tubular
• Stainless Steel.
• Seat Trim
• Leather (Std)
• Spare Tire Lock Keyed Cylinder Lock That Utilizes Same Key As Ignition And Door
• Transmission
• 4-Speed Automatic
• Electronically Controlled W/Overdrive And Tow/Haul Mode (Std)
• Wheel Flares
• Front And Rear

• Heavy-Duty Handling/Trailering Suspension Package
• Heavy-Duty Trailering Equipment
• Light Duty Power Package
• Off-Road Package w/QF7
• Off-Road Suspension Package
• Skid Plate Package
• 6 Speakers
• AM/FM radio
• CD player
• ETR AM/FM Stereo w/6-Disc CD Changer
• Radio data system
• Air Conditioning
• Dual-Zone Automatic Air Conditioning
• Electric Rear-Window Defogger
• Front dual zone A/C
• Rear window defroster
• Power steering
• Power windows
• Power Windows w/Driver & Passenger Express-Down
• Remote Keyless Entry
• Remote keyless entry
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Power Door Locks
• Delay-off headlights
• Front fog lights
• Front Halogen Fog Lamps
• Fully automatic headlights
• Panic alarm
• Security system
• Electronic Cruise Control w/Set & Resume Speed
• Speed control
• AutoTrac Electronic Transfer Case
• Heavy-Duty Rear Automatic Locking Differential
• Heavy-Duty Air-to-Oil External Transmission Oil Cooler
• Black Power Folding Outside Rear-View Mirrors
• Bodyside moldings
• Bright Bodyside Moldings
• Bumpers: chrome
• Chrome Grille Surround
• Front & Rear Wheel Flares
• Front License Plate Bracket
• Heated door mirrors
• Power door mirrors
• Rear Chrome Step Bumper w/Pad
• Rear step bumper
• Stainless Steel Chrome Plated Tubular Assist Steps
• Auto-dimming Rear-View mirror
• Black Leather-Wrapped Steering Wheel Rim
• Color-Keyed Carpeting w/Rubberized Vinyl Floormats
• Compass
• Driver door bin
• Electrochromic Inside Rear-View Mirror
• Floor Console
• Front reading lights
• Illuminated entry
• Leather steering wheel
• OnStar 1-Year Safe & Sound Service
• Outside temperature display
• Overhead console
• Overhead Mini Console w/Map Lights
• Passenger vanity mirror
• Rear seat center armrest
• Steering Wheel Mounted Radio Controls
• Tachometer
• Tilt steering wheel
• Voltmeter
• Split folding rear seat
• Ultrasoft Leather Seating Surfaces
• Passenger door bin
• 17" x 7.5" Aluminum Wheels
• 17" x 7.5" Polished Cast Aluminum Wheels
• Solar-Ray Deep Tinted Glass
• Variably intermittent wipers
• 3.42 Rear Axle Ratio

• Brakes
• Brake ABS System: Four-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.0 x 1.10
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 0.78
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 19.5
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 49.9
• Tailgate Width (in): 64.8
• Cooling System
• Total Cooling System Capacity (qts): 14.9
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 145
• Exterior Dimensions
• Cab to Axle (in): 41.9
• Front Bumper to Back of Cab (in): 148.1
• Ground Clearance, Front (in): 8.7
• Ground Clearance, Rear (in): 8.7
• Ground to Top of Load Floor (in): 33.7
• Height, Overall (in): 75.0
• Length, Overall w/o rear bumper (in): 230.2
• Overhang, Front (in): 36.9
• Overhang, Rear w/o bumper (in): 52.2
• Wheelbase (in): 143.5
• Width, Max w/o mirrors (in): 78.5
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: LH
• Interior Dimensions
• Front Head Room (in): 41.0
• Front Hip Room (in): 61.4
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Passenger Capacity: 5
• Second Head Room (in): 40.2
• Second Hip Room (in): 62.9
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 65.1
• Mileage
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 19
• Steering
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 47.3
• Summary
• Body Code: E63
• Body Style: Crew Cab 5.8' Wideside

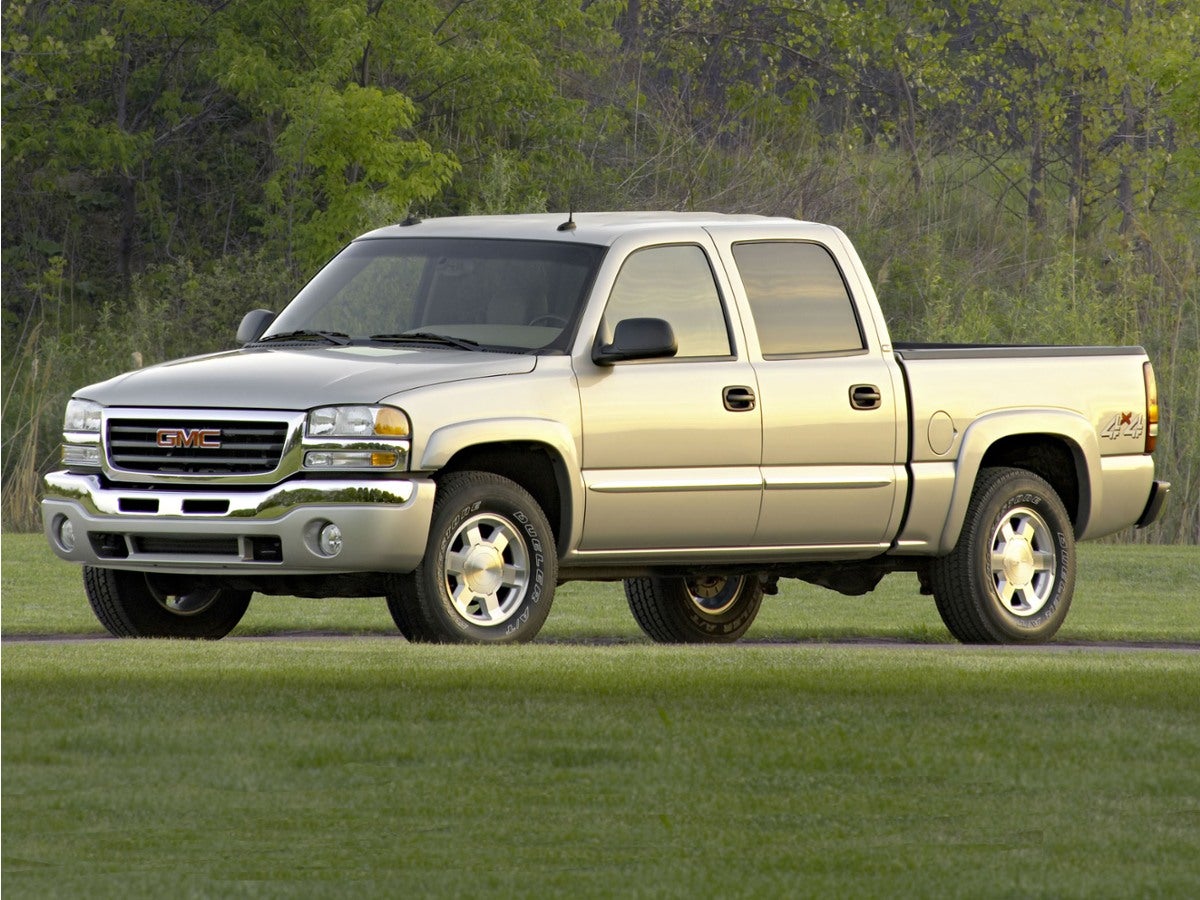

• Vehicle Name: GMC Sierra 1500
• Suspension
• Axle Capacity - Front (lbs): 3925
• Axle Capacity - Rear (lbs): 4000
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 46
• Spring Capacity - Front (lbs): 3925
• Spring Capacity - Rear (lbs): 4000
• Stabilizer Bar Diameter - Front (in): 1.12
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Tires
• Front Tire Order Code: QJM
• Front Tire Size: P265/70R17
• Rear Tire Order Code: QJM
• Rear Tire Size: P265/70R17
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: QJM
• Spare Tire Size: P265/70R17
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 750
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1110
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7400
• Weight Information
• Curb Weight - Front (lbs): 3113
• Curb Weight - Rear (lbs): 2186
• Gross Axle Wt Rating - Front (lbs): 3650
• Gross Axle Wt Rating - Rear (lbs): 4000
• Gross Combined Wt Rating (lbs): 13000
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Wheels
• Front Wheel Material: Aluminum
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Material: Aluminum
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17 x 7.5
